Full Automatic Card Punching And Sorting Machine YLP-FAS-1000 For different layouts and Card Materials

Brand Name : YL

Model Number : YLP-FAS-1000

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, Western Union, D/P, D/A, Western Union

Supply Ability : 1 set per 45 days

Delivery Time : 40-45days

Packaging Details : 1 plywood case

Power Supply : AC 380V/50 HZ

Productivity : 800~1000 big sheets/ hour

Punched card : Comply with ISO CR-80-ISO7810 international standard

Punching precision : ±0.10mm

Card numbers in the card slot : About 400pcs cards

Applicable Material : PVC, ABS, pet, PETG, paperboard, PVC and ABS mixed materials, etc. (different materials need to match with different special mould).

Contact Now

Full Automatic Card Punching And Sorting Machine YLP-FAS-1000 For Different Layouts And Card Materials

Full Automatic Card Punching and Sorting Machine/Card Puncher and Sorter/Card Die Cutter and Sorter/Card Die Cutting and Sorting Machine YLP-FAS-1000

1. Introduction of Full Automatic Card Punching And Sorting Machine YLP-FAS-1000 For Different Layouts And Card Materials

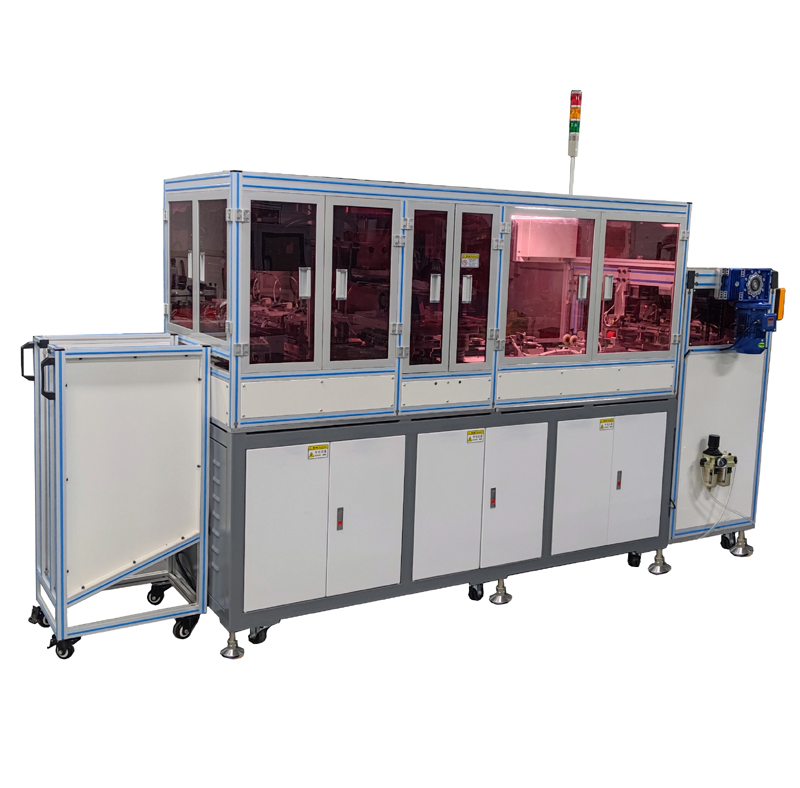

This machine is designed to punch the plastic cards in an automatic and speedy way with the high efficient card collection and sorting system. It is controlled automatically by PLC program, and the Chinese and English bilingual touch screen is available with a friendly man-machine interface.

Full Automatic Card Punching And Sorting Machine YLP-FAS-1000 For different layouts and Card Materials

2. Key Features of Full Automatic Card Punching And Sorting Machine YLP-FAS-1000 For Different Layouts And Card Materials

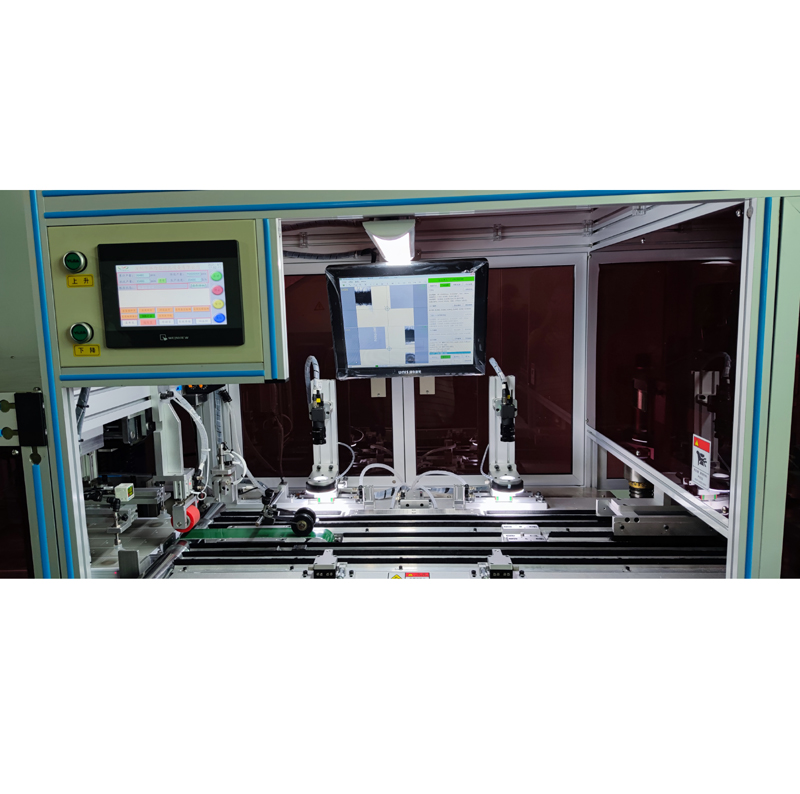

The CCD vision inspection system cooperates with the UVW correction platform to search for positioning, feeding and punching. The position parameters of each punching point are adjustable with high precision.
high-power servo motor is used as punching power, which has the advantages of low noise, fast speed, stable power and adjustable punching speed.
It has the advanced card sorting structure with the adjustable card pick-and-placing position, which can ensure the stability and reliability of card collection and sorting operation.
After the cards are punched, they can be automatically collected and sorted separately according to the printed pattern layout. It is especially suitable for punching business cards and the sheets with a variety of different patterns on the same sheet.
The PLC program controls automatic operation,it can realize real-time monitoring the card output, automatic shutdown and alarm in case of abnormal situations.

Full Automatic Card Punching And Sorting Machine YLP-FAS-1000 For different layouts and Card Materials

3. Technical Parameter of Full Automatic Card Punching And Sorting Machine YLP-FAS-1000 For Different Layouts And Card Materials

Power Supply	AC 380V/50 HZ	Applicable Layout	5X5, 4X8, 6X8, 8X8......
Power	10.5KW	Control mode	PLC program control + servo system
Air Source	6 kg/c㎡(with no water)	Operator number	One person
Air consumption	About 150L/min	Dimension	L2600×W1240×H1750mm
Weight	About 1800Kg	Punched card	Comply with ISO CR-80-ISO7810 international standard
Productivity	800~1000 big sheets/ hour	Punching precision	±0.10mm
Feeding height	Max 600 mm	Applicable Material	PVC, ABS, pet, PETG, paperboard, PVC and ABS mixed materials, etc. (different materials need to match with different special mould).
Collecting height	Max 700 mm
Card numbers in the card slot	About 400pcs cards

Full Automatic Card Punching And Sorting Machine YLP-FAS-1000 For different layouts and Card Materials

4. Application of Full Automatic Card Punching And Sorting Machine YLP-FAS-1000 For Different Layouts And Card Materials

The machine-Full Automatic Card Punching and Sorting Machine YLP-FAS-1000 is also named as Full Auto Card Puncher and Sorter, Full Auto Card Die Cutter and Sorter or Full Auto Card Die Cutting and Sorting Machine YLP-FAS-1000.
