Sequential Number Full Automatic Plastic Card 3x8 Punching Auto Card Die Cutter YLP-SN
1. Function and application of Sequential Number Full Automatic Plastic Card 3x8 Punching Auto Card Die Cutter YLP-SN
Sequential Number Card Puncher YLP-SN is specially designed for cutting the printed big sheets (such as 3*8, 4*8 or 5*5 layout) into the standard CR80 cards in a sequential and precise way.
The machine applies the powerful servo motor system as the punching power to ensure more reliable and easy punching. Professional card collecting structure is used to collect serial number cards or standard cards into one card magazine.
2. Key functional feature of Sequential Number Full Automatic Plastic Card 3x8 Punching Auto Card Die Cutter YLP-SN
Sequential Number Card Puncher/Card Punching Machine/Card Die Cutter/Card Die Cutting Machine YLP-SN
(Sequential number card puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)
1. High sensitivity optical fiber sensor is used to support the imported servo feeding system to ensure higher punch precision. The punching space position is adjustable by touch screen.
2. The durable servo motor system is applied to work as the punching power, which has lower noise, failure ratio and more reliable operation.
3. The machine is controlled with PLC system. It can punch automatically after the big sheet is manually loaded.
Sequential Number Plastic Card Puncher is also known or named as Sequential Number Card Punching Machine, Card Die Cutter or Card Die Cutting Machine.
| Applicable Material | Various plastic sheets including PVC, ABS, PETG, etc. |
| Air Source | 6 kg/c㎡(Dry) |
| Power supply | AC380V 50Hz 3-phase 5-line |
| Total Power | 3.5kw |
| Productivity | about 9000~12000 pcs /hr |
| Dimension | L1700×W830×H1520mm |
| Weight | Approx.800 kg |
3. Technical Parameter of Sequential Number Full Automatic Plastic Card 3x8 Punching Auto Card Die Cutter YLP-SN
Technical Parameter:
Power Supply: AC 380V/50 HZ
Material: Various plastic sheets including PVC, ABS, PETG, etc.
Total Power: 3.5KW
Material Size: 3X8, 4X8 or 5X8
Air Source: 6 kg/c㎡(Dry)
Speed: 9000~12000 pcs /hr
Air Consumption: 70L/min
Control Method: PLC programming+ servo system
Weight: around 800Kg
Operator: 1 person
Precision: ±0.10mm
Dimension: L1700×W830×H1520mm
| Power supply | AC 380V/50 HZ | Applicable layout | 2x5, 3x8, 4x8 or 5x5 layout etc |
| Power | 3.5KW | Control mode | PLC program control + servo system |
| Air Source | 6 kg/c㎡(with no water) | Operator number | 1 person |
| Air consumption | About 70L/min | Dimension | L1700×W830×H1520mm |
| Weight | About 800Kg | Punched card | Comply with ISO CR-80-ISO7810 international standard |
| Punching precision | ±0.10mm | Speed | 9000~12000 pcs /hr |
| Applicable materials | PVC, ABS, pet, PETG, paper card, PVC and ABS mixed materials, etc. |
4. More details of Sequential Number Full Automatic Plastic Card 3x8 Punching Auto Card Die Cutter YLP-SN
Packing information: using the PE film as the protection fims insides, standard export plywood case outside;
Our service :
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, the condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) Efficient on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can make invitation letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
Guarantee
(1)We can supply one year guarantee period for our card machines, if the client have any question ,they could contact our service department any time ,we will supply efficient service .
(2)Within one year ,if the client meet the unsolvable questions ,we can make site supporting.
|
|

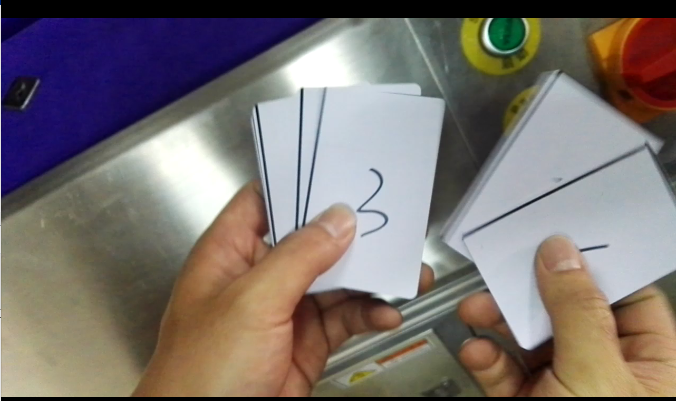

Sequential Number Full Automatic Plastic Card 3x8 Punching Auto Card Die Cutter YLP-SN Images
|
