RFID And Magnetic Card Encoder Machine Full Automatic 8000 Cards/Hour YDE-1

Brand Name : YL

Model Number : YDE-1

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, Western Union, D/P, D/A

Supply Ability : 1 set per 35 days

Delivery Time : 30-35days

Packaging Details : 1 plywood case

Speed : 8000 cards/hour for magnetic encoding operation 6000-7000 cards/hour for RFID chip reading operation. 2000- 4000 cards/hour for Chip data writing operation.

Magnetic Record Density : 2.210 BPI for track 1; 75 or 210 BPI for track 2; and 210 BPI for track3

Applicable Magnetic tripe : HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide

Applicable Card type : Standard CR80 card, 0.3mm-1mm thickness

Power supply : AC220V, 50/60Hz

Power : 6.1kW

Net Weight : 7.120kg

Machine size : L1400×W400×1300mm

Package size &weight : 9.1 plywood case, GW 165KG, L1550×W550×1380mm

Magnetic writing head service lifetime : 10.200,000 to 300,000 times

Magnetic reading head service lifetime : 11.400,000 to 500,000 times.

Contact Now

RFID and Magnetic Card Encoder YDE-1

Mini Card Data Encoder Economic Card Data Personalization Machine RFID Card Tester RFID and Magnetic Card Encoder YDE-1

1. Introduction of RFID and Magnetic Card Encoder YDE-1

It is designed to realize the following card data processing functions:

RFID card electrical performance test (check chip circuit inside RFID card good or not, if not good, the bad cards will be rejected);
RFID card chip data reading, data writing or password change (1 RFID encoding head is applied, It can read UID from almost all the RFID card chips (HF/LF chip) in the existing market. It can writing data, change initial passwords or sect keys in such RFID chips including Mifare S50, S70, Ultralight, Ultralight-C, Mifare Plus, Ntag203, Ntag213, Ntag216, Icode-2, FM11RF005M, EM4100(ID), ATA5577, EM4305).
Encode Magnetic stripe with the source data file
Encode magnetic stripe with the RFID Chip data read by RFID encoding unit.

Speed	8000 cards/hour for magnetic encoding operation. 6000-7000 cards/hour for RFID chip reading operation. 2000- 4000 cards/hour for Chip data writing operation.
Magnetic Record Density	210 BPI for track 1; 75 or 210 BPI for track 2; and 210 BPI for track3
Applicable Magnetic tripe	HiCo/LoCo, 300 oe-4000 oe, 3 tracks, 12.7mm wide
Applicable Card type	Standard CR80 card, 0.3mm-1mm thickness
Power supply	AC220V, 50/60Hz
Power	1kW
Net Weight	120kg
Machine size	L1400×W400×1300mm
Package size &weight	1 plywood case, GW 165KG, L1550×W550×1380mm
Magnetic writing head service lifetime	200,000 to 300,000 times
Magnetic reading head service	400,000 to 500,000 times

Product Tags:

full auto magnetic card encoder machine

8000Cards/Hour magnetic card encoder machine

China RFID And Magnetic Card Encoder Machine Full Automatic 8000 Cards/Hour YDE-1 factory

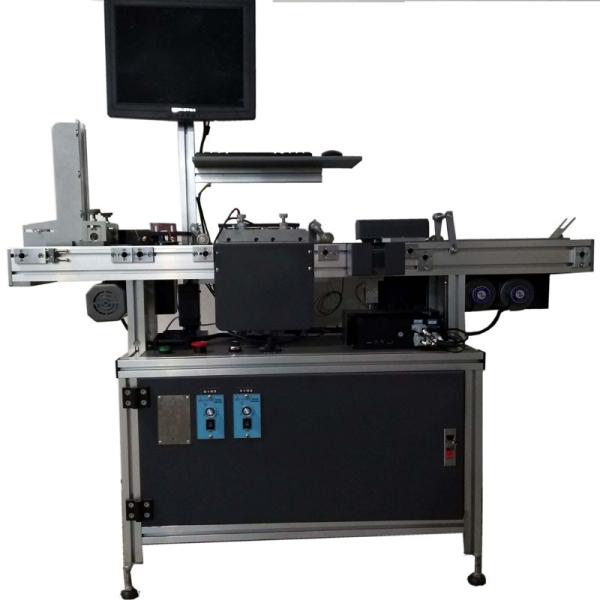

RFID And Magnetic Card Encoder Machine Full Automatic 8000 Cards/Hour YDE-1 Images
